Customized Factory Price Open/Silent Type SDEC Diesel Generator 560KW/700KVA Power Supply Water Cooling

Name: Customized Factory Price OpenSilent Type SDEC Diesel Generator 560KW700KVA Power Supply Water Cooling
Brand: SDEC
Price: 3952 USD

Quality Customized Factory Price Open/Silent Type SDEC Diesel Generator 560KW/700KVA Power Supply Water Cooling wholesale

Brand Name : SDEC

Model Number : 6KTAA25-G38

Place of Origin : CHINA

MOQ : 1set

Price : 3952-5469USD

Payment Terms : L/C, T/T

Supply Ability : 50sets per month

Delivery Time : 20work days

Packaging Details : plywood

Speed : 1500RPM

Frequency : 50/60HZ

Rated power : 5KW to 2000KW

Output type : AC Three Phase

Type : Open or Silent(super Silent)

Color : At your requirement,Customized

Contact Now

Customized Factory Price Open/Silent Type SDEC Diesel Generator 560KW/700KVA Power Supply Water Cooling

Product Overview

High quality water cooling SDEC diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	700	770
Power Rating (kW)	560	616
Frequency (Hz)	50
Engine Model	6KTAA25-G38
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Power Definitions

PRP (Prime Power)

Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Emergency Standby Power)

The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BSD770 (Open Type)	BSD770S (Silent Type)
Length (L) mm	3900	5400
Width (W) mm	1610	2000
Height (H) mm	2500	2500
Tank Capacity (L)	1288	1288

Note: Specifications and illustrations are subject to revision without notice.

Engine Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-354FS
Alternator Rated Power	560kw/700kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%

Product Images

Customized Factory Price Open/Silent Type SDEC Diesel Generator 560KW/700KVA Power Supply Water Cooling

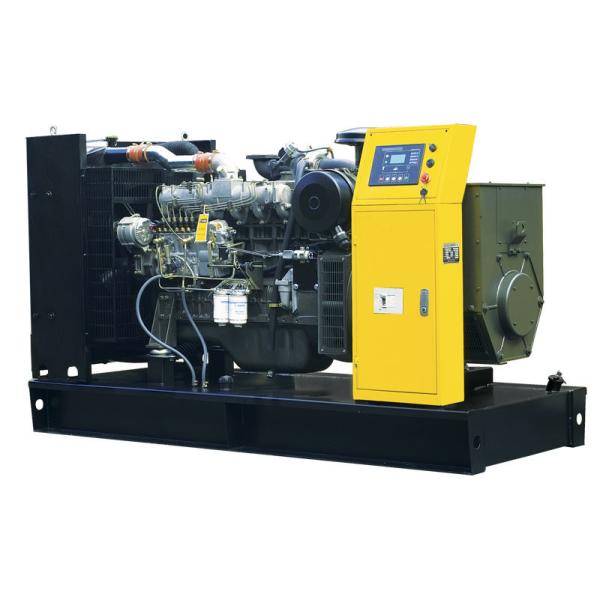

Front View

Side View

Control Panel

Engine Detail

Alternator View

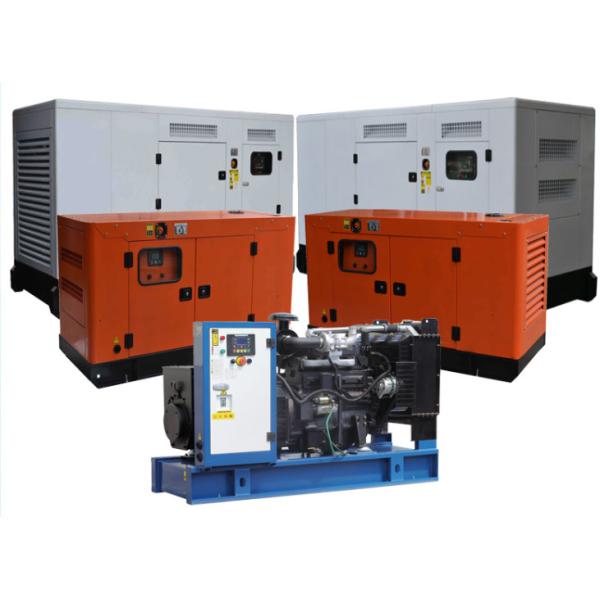

Silent Type Exterior

Internal Components

Cooling System

Fuel System

Electrical Connections

Full Assembly

Quality Inspection

Specifications and illustrations are subject to revision without notice.
